Bypass Hardware Kit: Series 4BPK-GL Rated 60 lbs. with Non-Fascia Steel Track

Bypass Kit 4BPK4-GL: for two 24" doors in a 48" opening

$17.16

Bypass Hardware Kit: Series 4BPK-GL Rated 60 lbs. with Non-Fascia Steel Track

$17.16

Kit Bypass Kit 4BPK4-GL: for two 24" doors in a 48" opening Bypass Kit 4BPK5-GL: for two 30" doors in a 60" opening Bypass Kit 4BPK6-GL: for two 36" doors in a 72" opening Bypass Kit 4BPK8-GL: for two 48" doors in a 96" opening

4BPK-GL Bypass Door Hardware Kit Steel Track with No Fascia

Bypass door hardware 4BPK-GL offers a sleek and space-saving solution for smoothly operating sliding doors in homes and businesses. Our non-fascia steel track is the sturdy alternative to other brands that carry a maximum of 50 pounds. 4BPK-GL tracks can carry either 60 or 75 pounds (order as an extra 2 pairs of 2288 hangers).

Features

Easily adjustable hangers
Self-aligning wheel system
Permanently lubricated thermoplastic wheels
Supports panels weighing up to 60 or 75 pounds (order 2-2228 hangers)
Vertical adjustments can be made after installation
Hanger system allows for easy panel removal
Durable steel track provides smooth, quiet operation

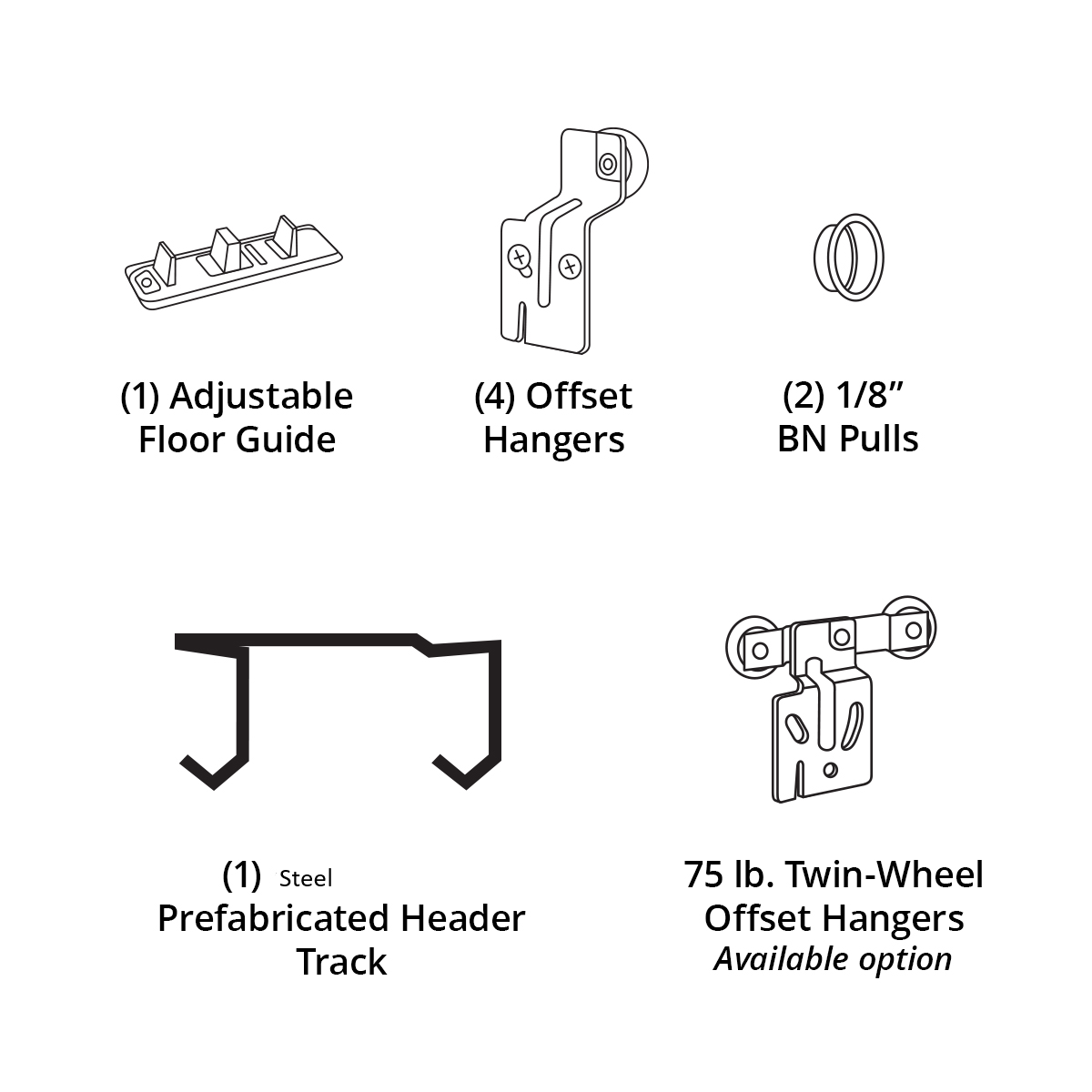

Kits include track, 1/2″ offset hangers (4), adjustable floor
guide, 1/8″ Satin Nickel pulls (2) and all necessary screws

Download Installation Instructions

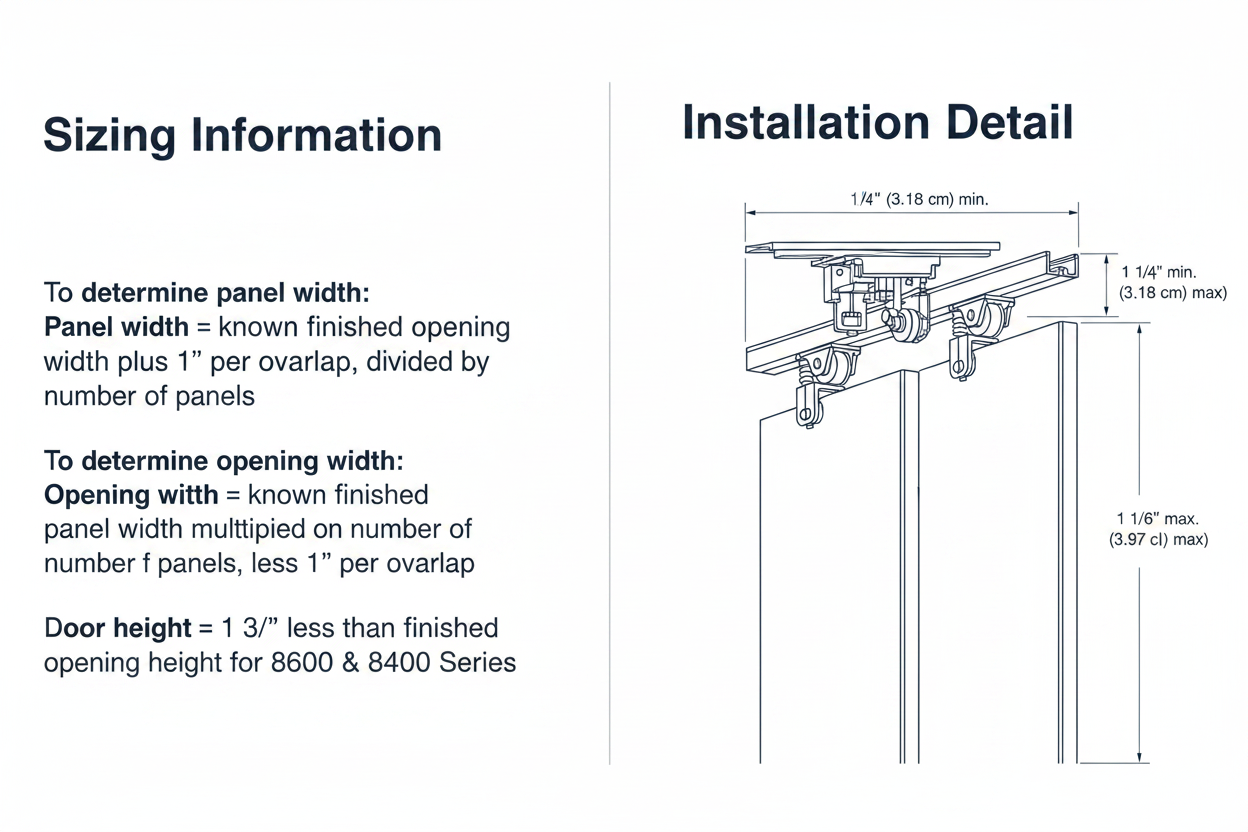

To determine panel width: Panel Width = known finished opening width plus 1" per overlap, divided by number of panels

To determine opening width: Opening Width = known finished panel width multiplied by number of panels, less 1" per overlap,

To determine door height: 1-3/4" less than finished opening height
