HBG Column Installation Kit 17040
Includes brackets and hardware for columns ordered with non-Tuscan cap and base. Also used for diameter columns over 12" to add additional tie-downs. For 12" and smaller width columns see 17041.
Note: Bottom hardware is included with no-taper square and tapered round columns from beaconhillsupply if ordering Tuscan cap and base sets.

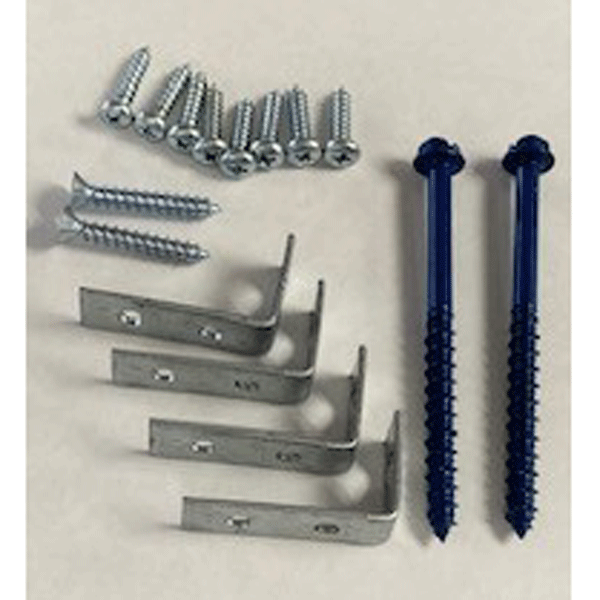

Contents: (SS = Stainless Steel)
2 - 10x2-1/2" Phillips Flathead SS screws
8 - 10x1" Phillips Pan Head SS screws
2 - 3-1/2" Slotted Hex Washer Tapcon screws
4 - 1-1/2" x 7/8" x 1/2w" Aluminum L Brackets
This kit is not rated for wind "uplift". See the Perma-Loc if you need a rated installation hardware.
Download Installation Instructions
HBG does not recommend brackets at the top of the column as this can cause a column to crack as the structure moves. The weight of the roof keeps the top of the column in place.
